Commercial grade C9 lighting, part by part

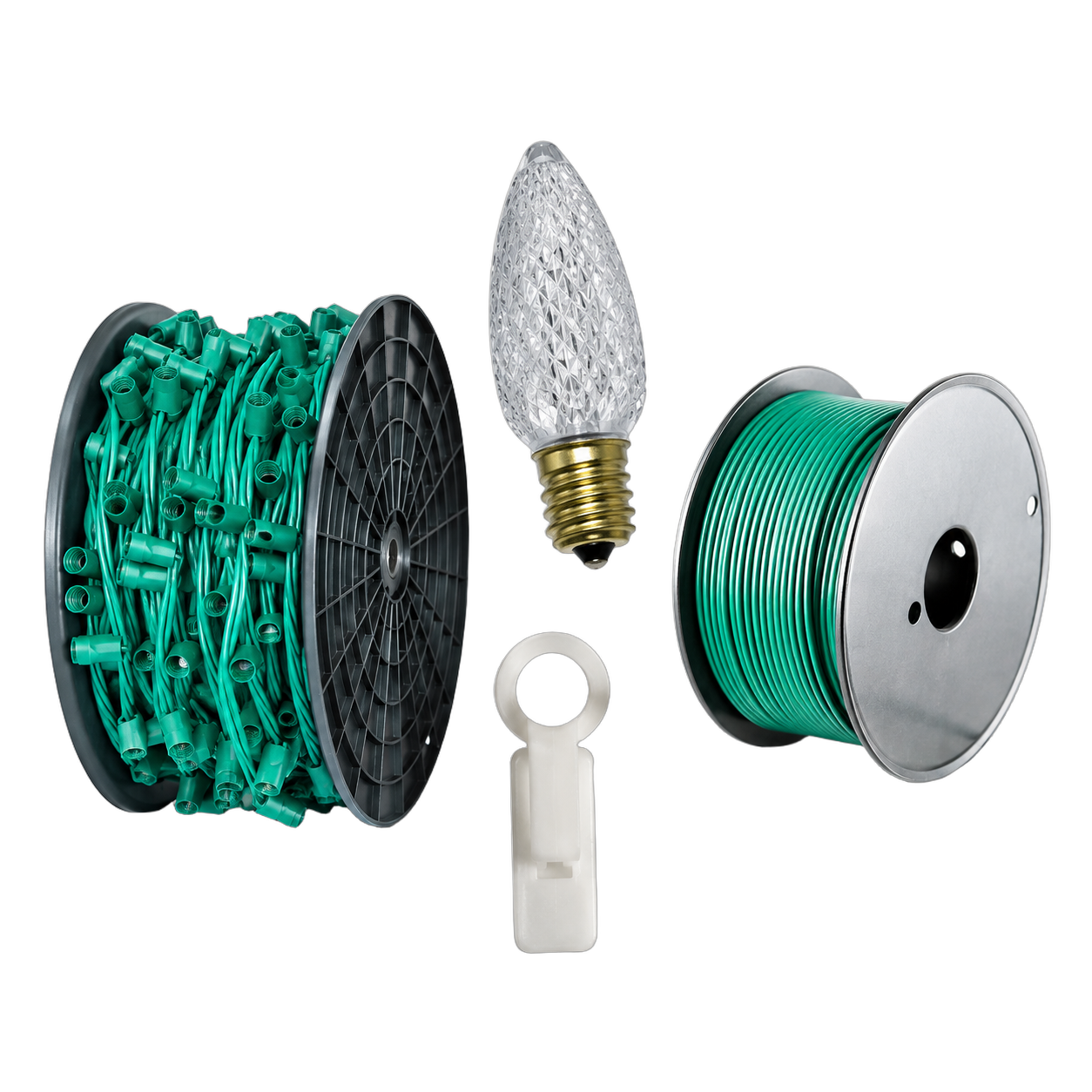

A C9 run on a commercial building is a small electrical assembly that has to survive a winter outdoors and come back the next year. It is built from five parts: socket wire, sockets, bulbs, connectors and mounting hardware. Commercial Grade Christmas Lights lists each of those parts with the specifications that decide where it belongs.

Socket wire

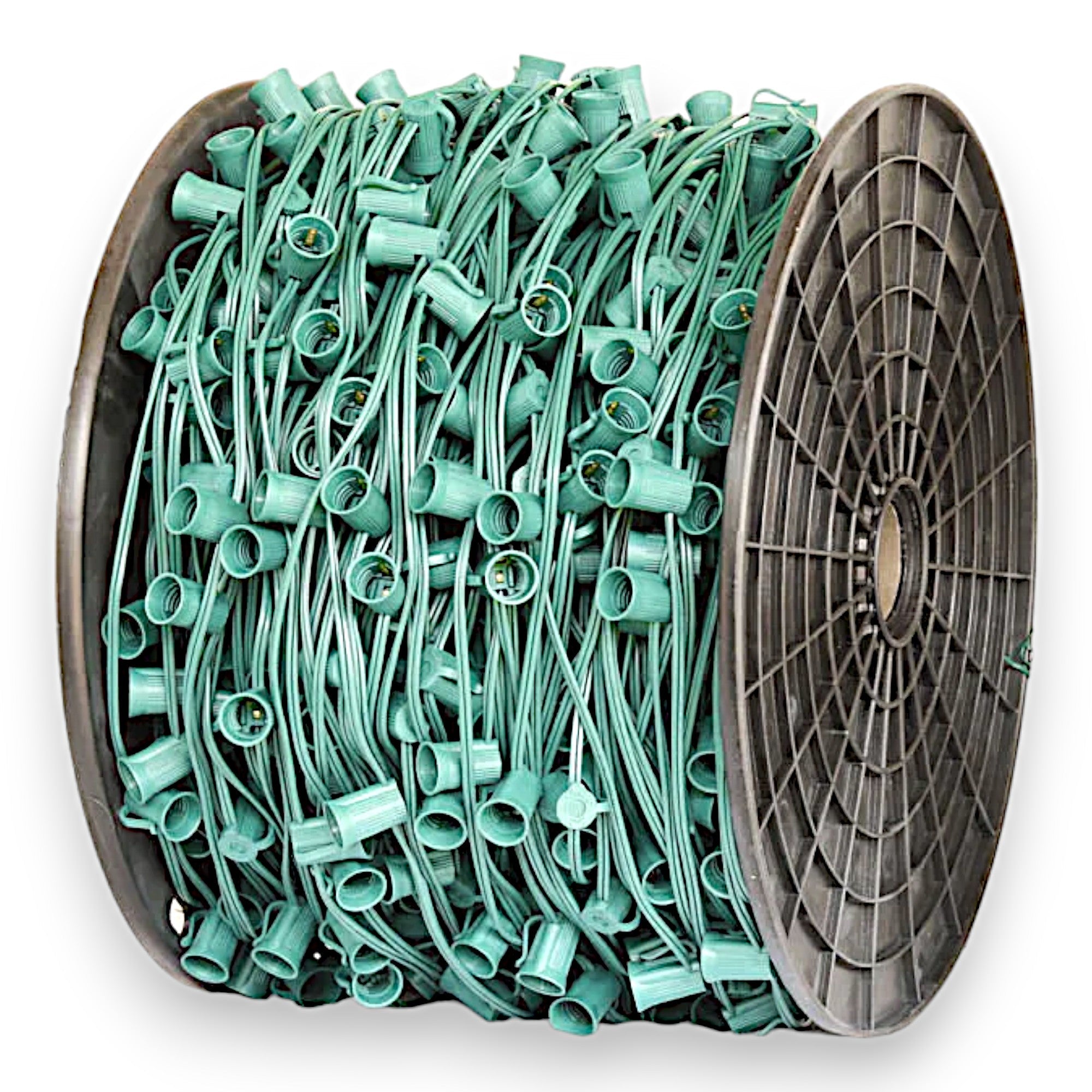

C9 socket wire is two-conductor flat wire with sockets molded or clamped on at a fixed spacing. The jacket type is printed on the wire: SPT-1 has a thinner jacket, and SPT-2 has a thicker jacket that resists abrasion and handles repeated coiling better. Socket wire spools come in 1,000 ft. lengths at 12 in., 15 in. and 24 in. spacing, so runs can be cut to the exact length of each roofline.

Sockets and bulbs

C9 sockets take bulbs with an E17 intermediate base. LED C9 retrofit bulbs screw into those sockets and draw a fraction of the power of incandescent C9 lamps, which allows longer runs per circuit. A socket that has been crushed or has filled with water can be cut out and swapped with a replacement socket instead of replacing the run. Keep bulbs seated fully in the socket so the base is covered.

Connectors

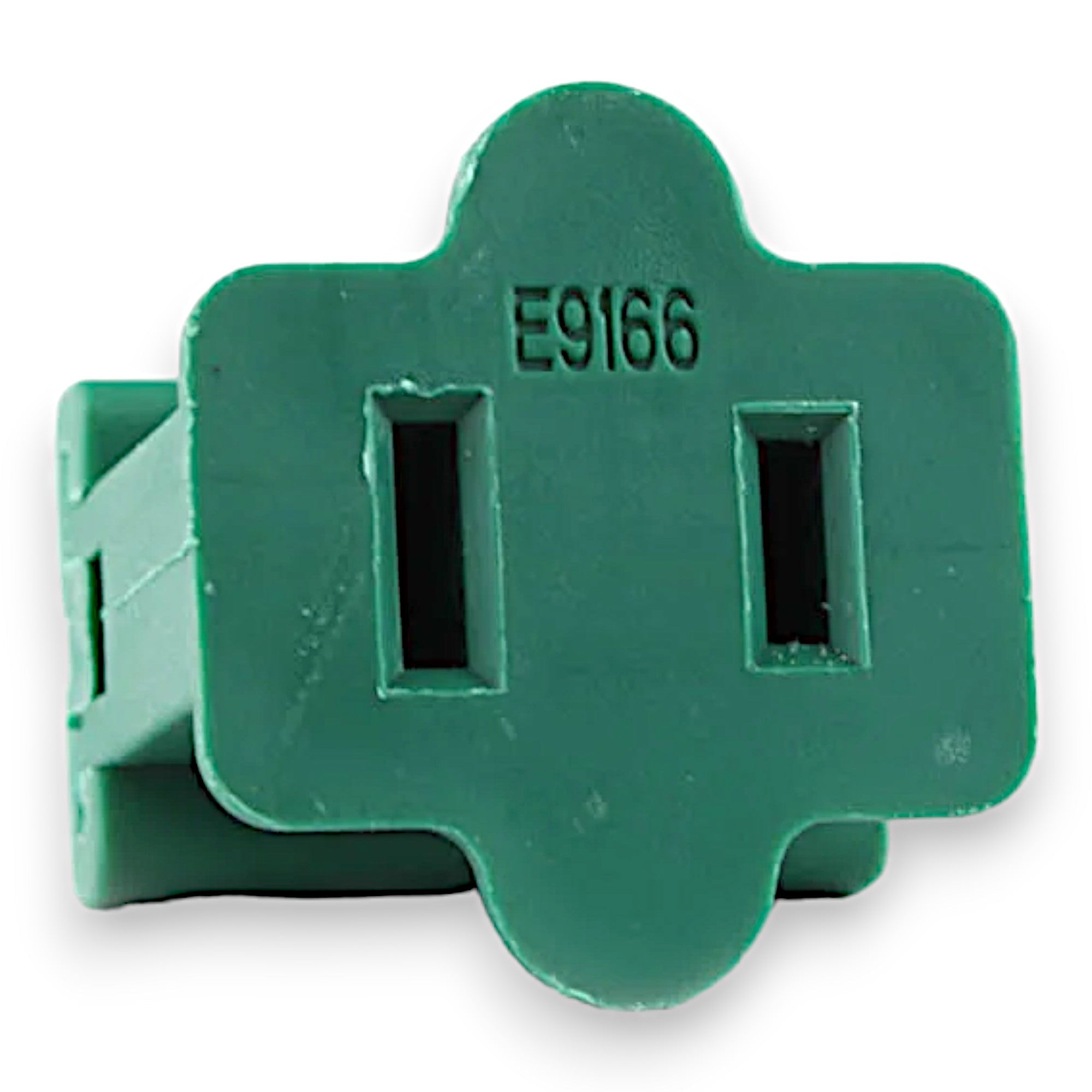

Slide-on male and female plugs clamp onto cut socket wire or lamp cord without stripping. The prongs pierce the jacket and contact each conductor when the plug is closed. Use plugs sized for the wire jacket, such as SPT-2 zip plugs on SPT-2 wire and zip cord. A plug that is half-closed or on wire cut at an angle is the most common cause of a dark section.

Mounting hardware

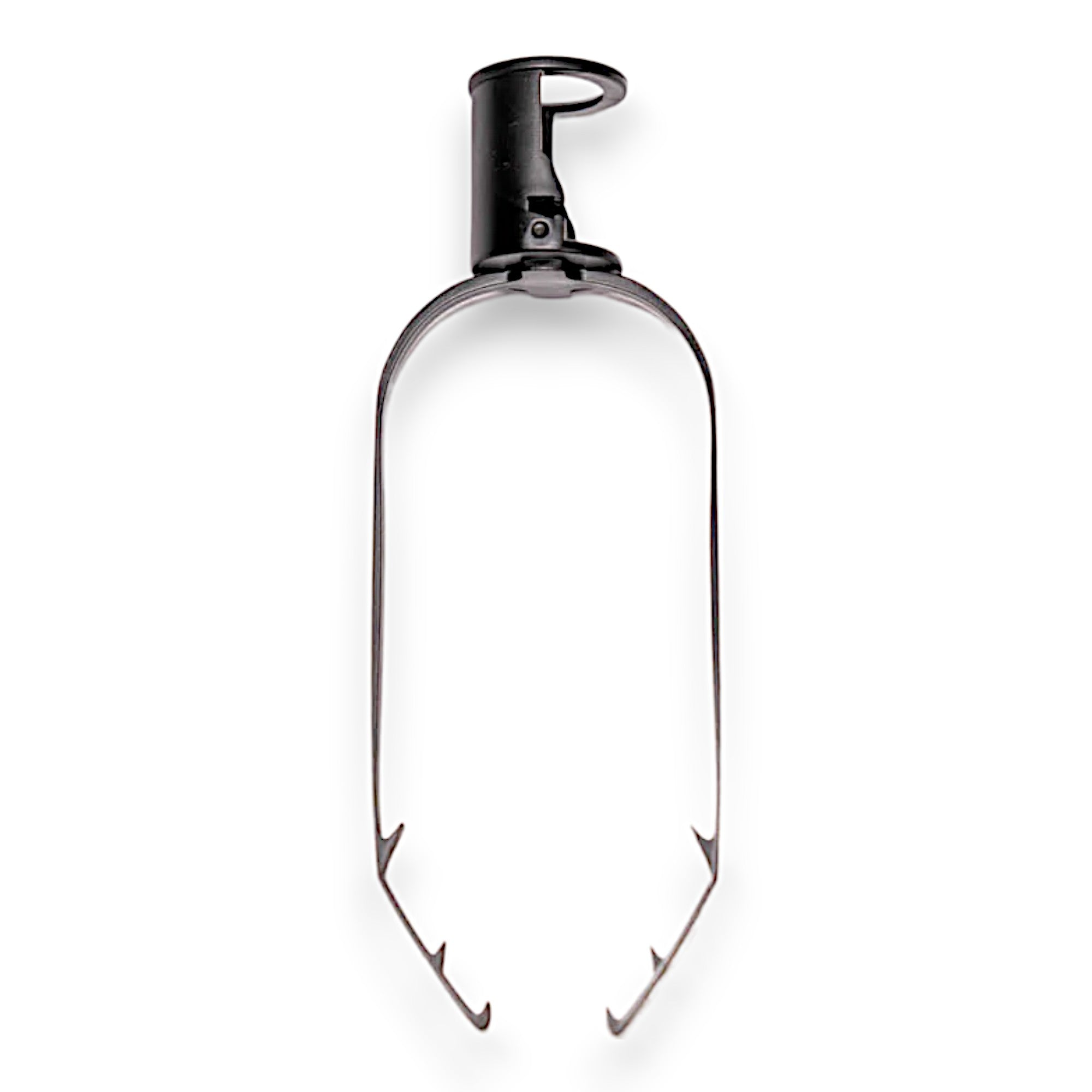

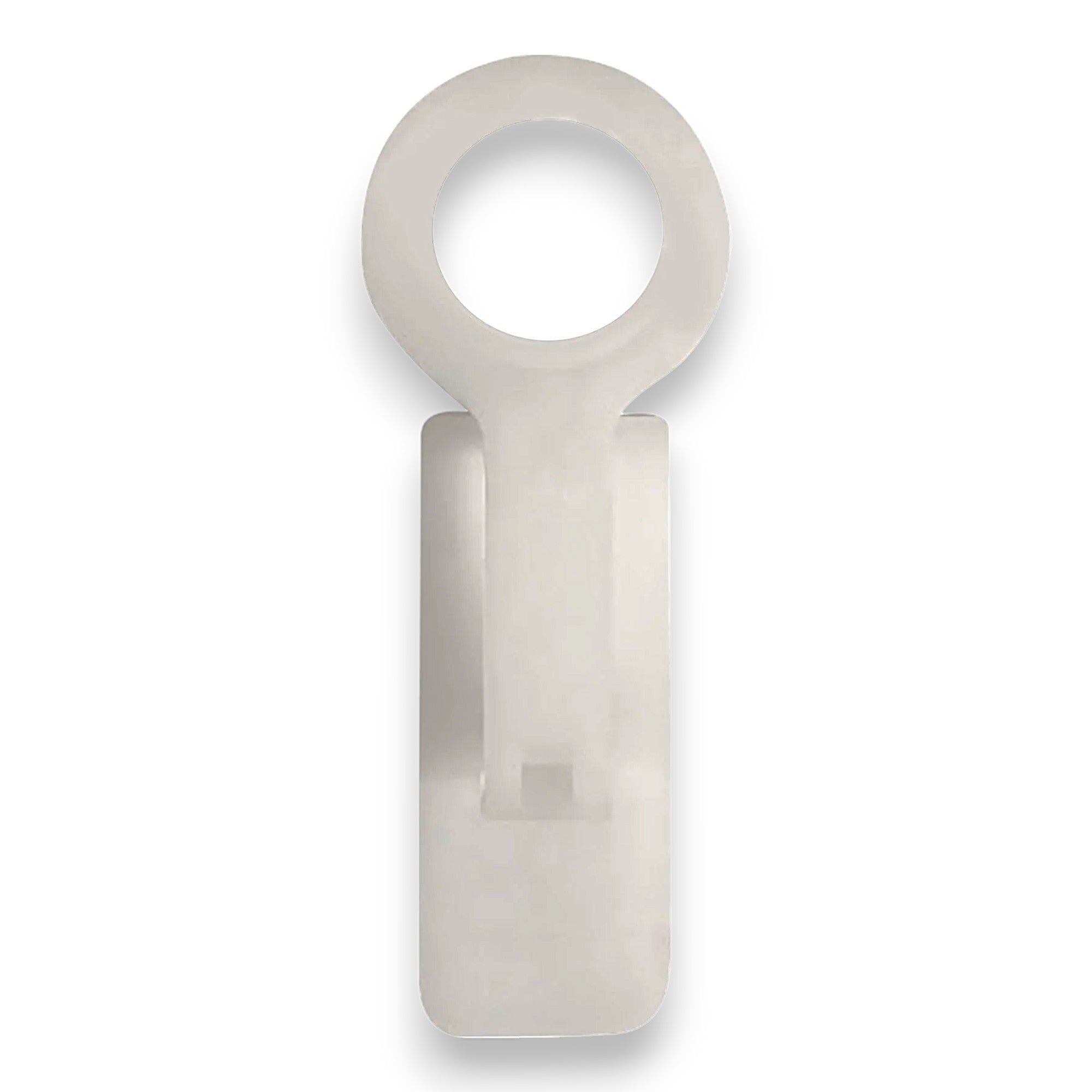

Commercial rooflines mix surfaces. Ridge clips hold sockets along peaks, all-in-one clips cover shingles and gutters, tile and extended fascia clips handle tile roofs and deep fascia, and magnet clips hold to metal awnings, canopies and standing-seam edges. Matching the clip to the surface keeps every bulb upright and keeps tension off the wire. All of these are in clips and mounting.

Control

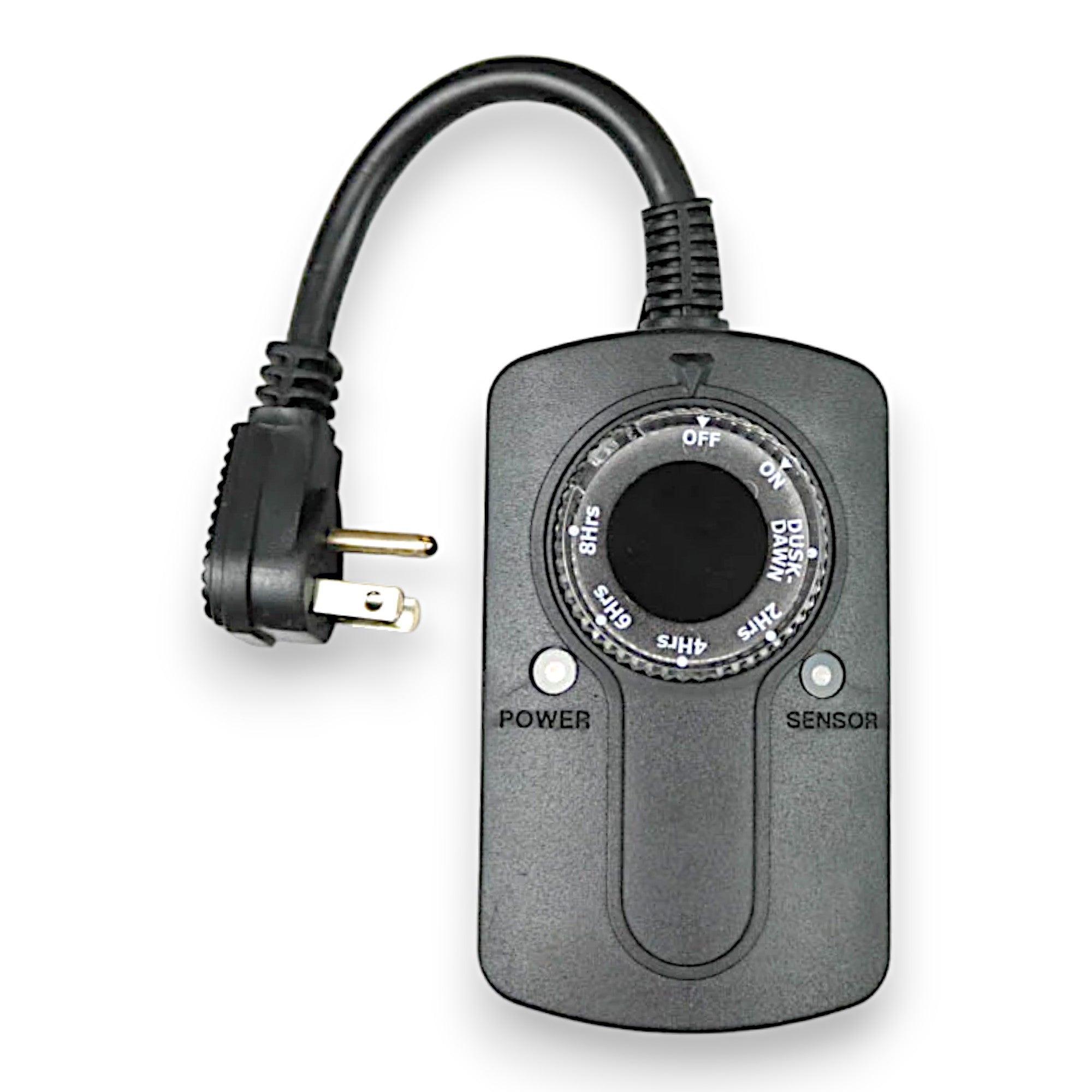

Photocell timers switch a circuit on at dusk and off after a set number of hours. One timer controls every run plugged into it, up to the rated load of the outlet circuit. On a multi-entrance building, one timer per circuit keeps every elevation on the same schedule.

Where component choice matters most

Runs on commercial buildings tend to be longer, higher and harder to reach than residential ones, and they're often installed on a schedule set by a property manager. A failed plug at the top of a three-story facade means a lift or a long ladder, not a quick fix. Choosing the heavier jacket, matching plugs to the wire and mounting with the correct clip for each surface reduces those return trips.

Ordering

Shipping is free on all orders within the US, with no minimum and no added fees, and every order ships the same day. Unused product in its original packaging can be returned within 30 days of delivery.

What makes a C9 run hold up

A commercial roofline is installed in the fall, sits through rain, ice and wind for two months, comes down in January and goes back up the next year. The runs that last are the ones where every component was chosen for that cycle. This guide walks through each component and the specification that matters most.

Wire jacket: SPT-1 or SPT-2

C9 socket wire is flat two-conductor wire, the same construction as lamp cord. The difference between grades is mostly the jacket. SPT-1 has a thinner jacket and is lighter and more flexible. SPT-2 has a thicker jacket that resists abrasion against shingle edges, gutter lips and brick, and tolerates being coiled and uncoiled every season. For runs that will be reused on a commercial building, SPT-2 is the common choice. The jacket type is printed along the wire.

Conductor size and load

The conductor size, or gauge, sets how much current a run can carry. The rating is printed on the wire and the spool label. With LED C9 bulbs the load per run is small, so gauge rarely limits a single roofline. It matters when several runs are daisy-chained from one plug, because the first section of wire carries the current for everything after it. Keep long chains split across separate leads back to the power source.

Sockets

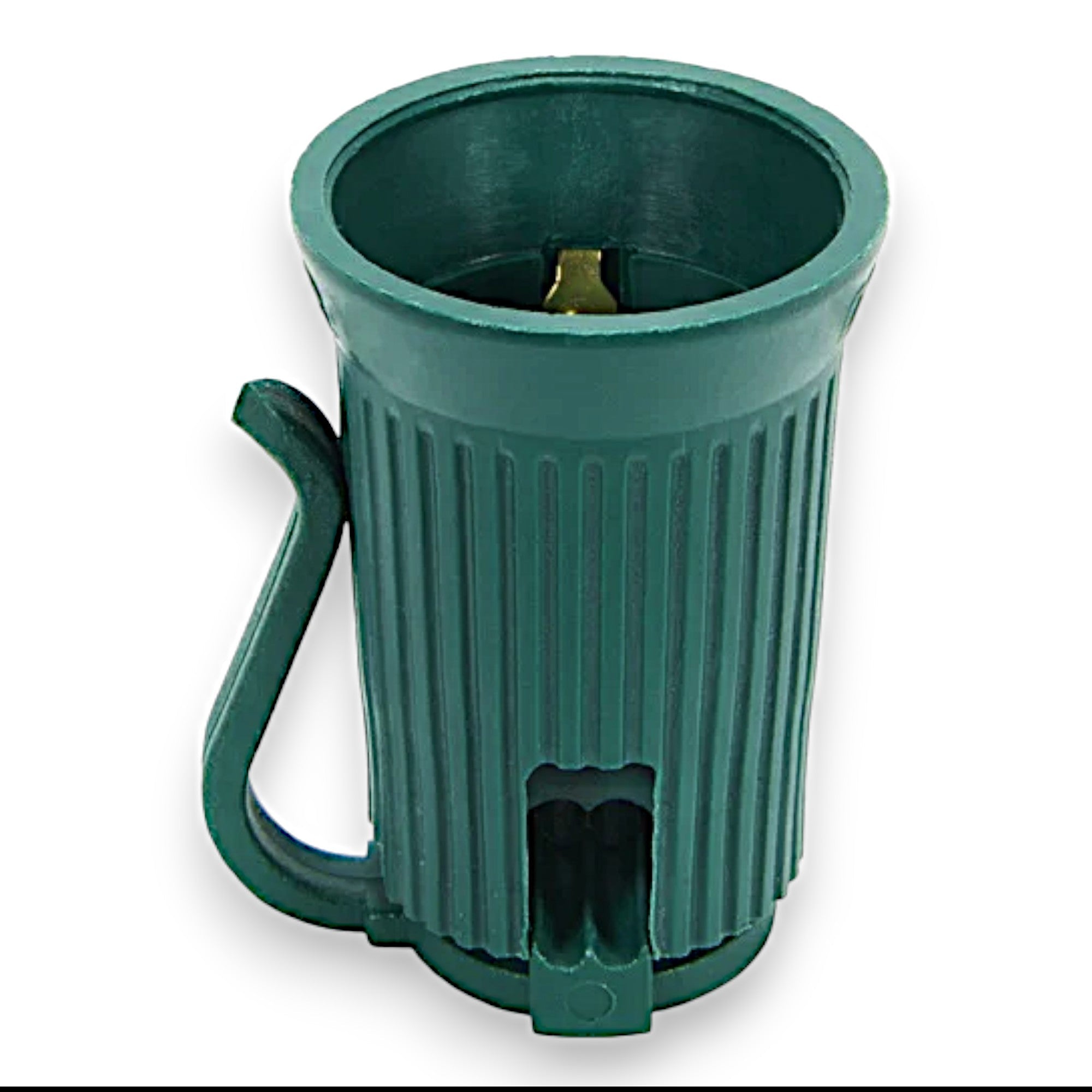

C9 sockets accept the E17 intermediate base. When a socket fails, it is usually because it was crushed by a ladder or foot, or because water got in and corroded the contacts. Inspect sockets during takedown, mark any that are cracked, and swap them with replacement sockets before storage rather than on the roof next fall.

Bulbs

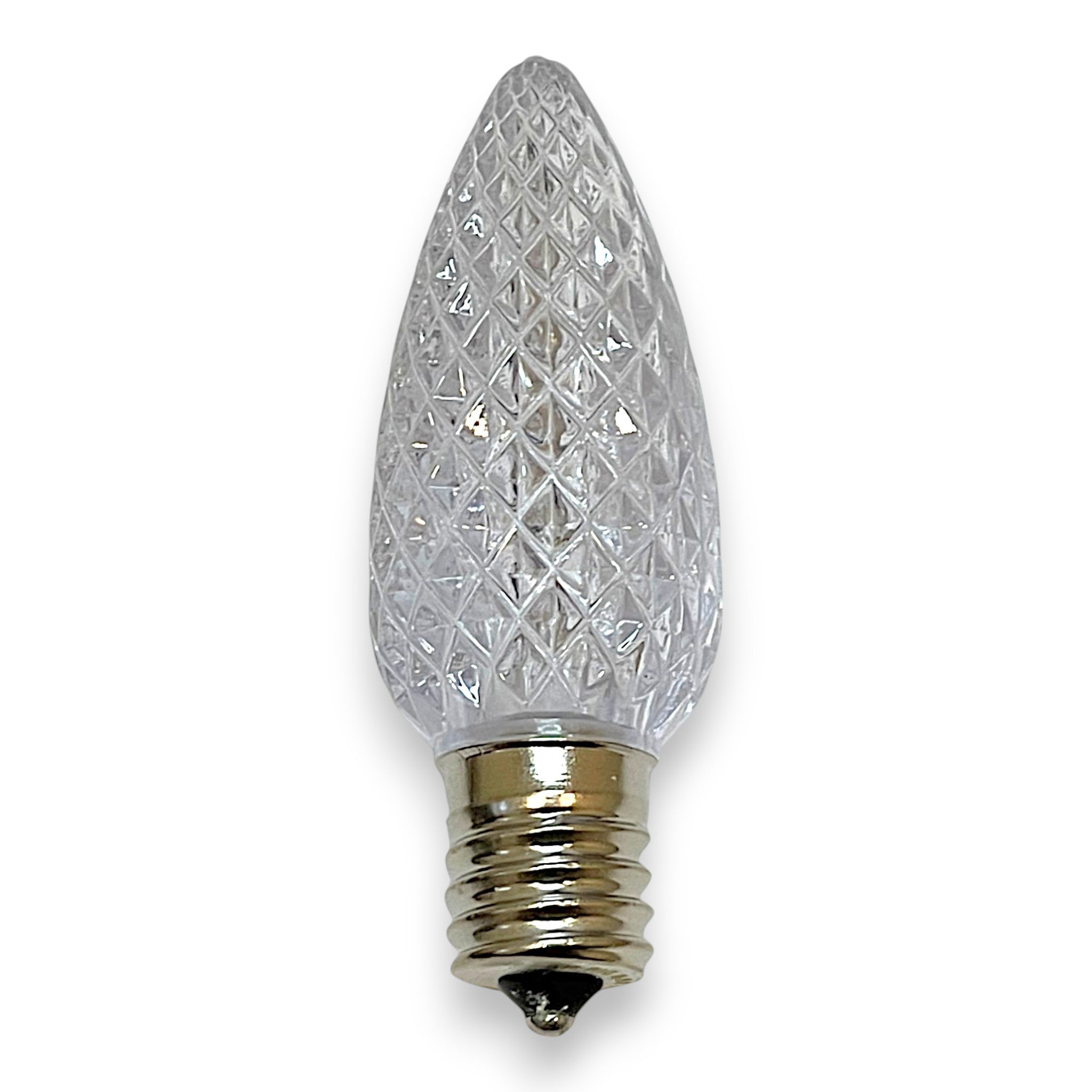

LED C9 bulbs are retrofit bulbs: they screw into standard C9 sockets in place of incandescent C9 lamps. Two things matter on a commercial job. First, seat each bulb fully so the socket covers the base and keeps water off the contacts. Second, keep every bulb on a run from the same color temperature and the same production run where possible, so the line reads as one color from the street. LED C9 bulbs are $19.95 for a 25-pack, or $0.638 each in a 500-bulb case.

Connectors

Slide-on plugs pierce the jacket and contact each conductor when closed. They are fast, but only reliable when the wire is cut square, pushed fully into the plug, and the plug is closed completely. Match the plug to the jacket: SPT-2 zip plugs for SPT-2 wire and zip cord. Male plugs run $0.699 each by the 1,000-plug case.

Weatherproofing the run

• Drip loops. Let the wire dip below each connection before it rises into the plug, so water runs off the low point instead of into the connector.
• Connections up, off the ground. Keep plug-to-plug connections off soil, mulch and flat roof sections where water pools. Point the open side down.
• GFCI protection. Every outdoor circuit should be GFCI-protected. A GFCI that trips after rain is often pointing to a connection that needs a drip loop.
• No tension on sockets. Clip the run so the weight hangs on clips, not on the socket-to-wire joint. Ridge clips on peaks and magnet clips on metal keep tension off the wire.
• Photocell placement. Mount the photocell timer where it sees open sky and is shielded from direct rain, and away from building lights that could keep it from switching on. Timers are $11 each or 4 for $43.

Takedown is maintenance

Most failures in year two start during takedown in year one. Pull clips instead of pulling wire, coil runs loosely without kinking the jacket, label each run by building and elevation, and store bulbs and runs dry. A run that comes down carefully goes back up as one piece the next season.
